Our FE 8000 sprag clutch has no RPM limits and a high torque rating. See how it eliminated winch failures from occurring in a hydraulic winch and increased safety with the higher torque rating.

Executive Summary

After experiencing product failures from another manufacturer’s sprag clutch, a hydraulic winch company came to GMN for help.

Knowing GMN could provide application engineering support and offer a high-quality sprag clutch, the customer asked GMN to provide a solution that would eliminate the recurring product failures they were having when unspooling at high speeds (RPM).

GMN provided a direct “drop-in” replacement sprag clutch, from the GMN FE 8000 sprag clutch product line.

The FE 8000 sprag clutches:

  • Removed any maximum RPM limits.
  • Increased torque capacity (with the same size clutch), thereby increasing the safety.
  • Eliminated the need for a system redesign.
  • Increased reliability of the winch system by stopping the product failures from occurring.

Download Now: Winch Case Study [PDF]

Overview: Hydraulic Winch

Heavy-duty jobs usually need hydraulic winches. Cranes use them to move equipment and heavy machinery.

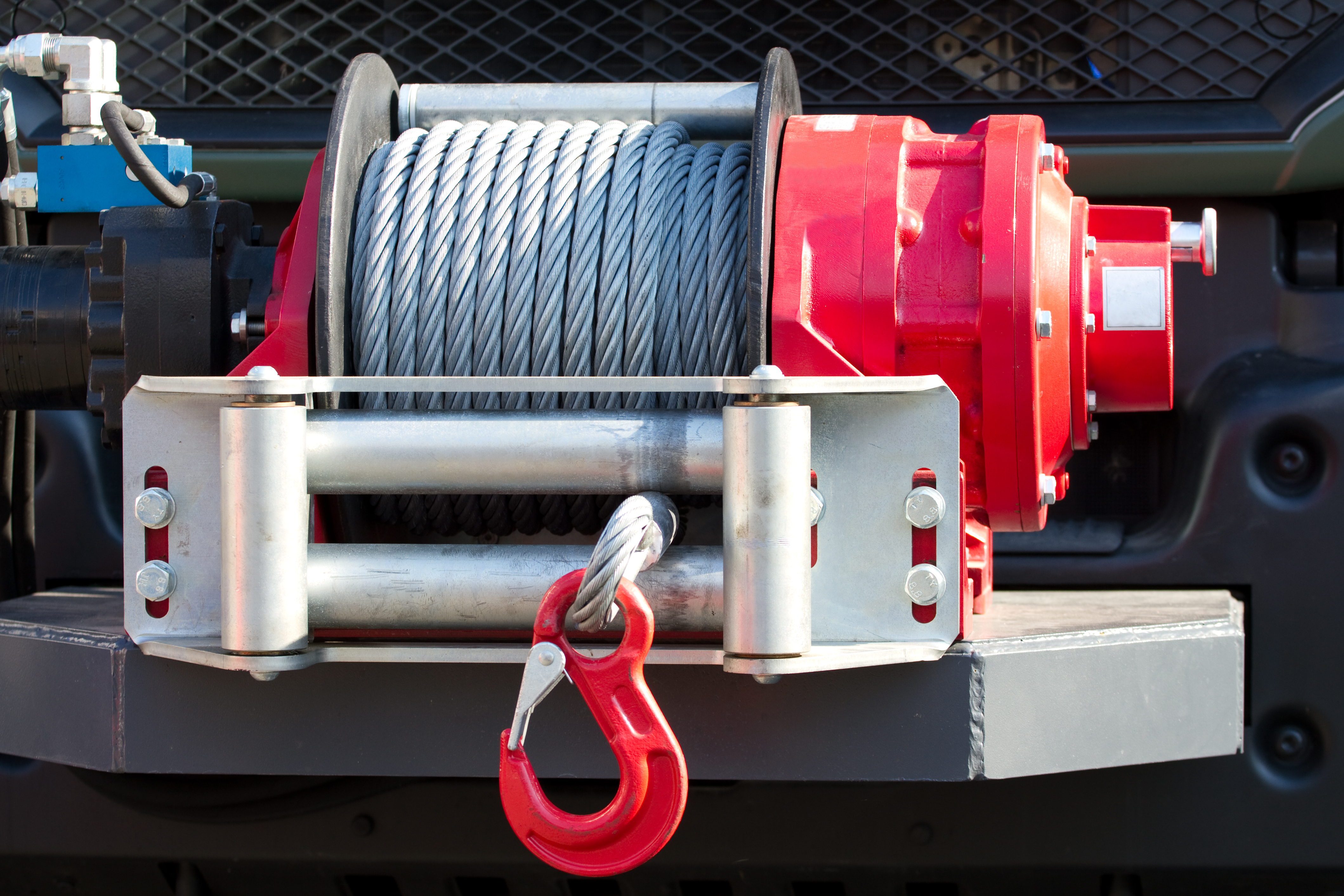

Hydraulic Winch

Compared to an electric winch, a hydraulic winch carries heavier loads and operates at a higher power output. This combination brings a higher potential for serious injury or property damage if winch failure occurs.

A sprag clutch is located inside the braking mechanism in a hydraulic winch. A sprag clutch is a critical safety component that prevents the drum from unspooling.

Winch Failure: Sprag Clutch Hit Max Speed Limits

After analyzing the braking mechanism, the problem was caused by the max RPM limit from the other manufacturer’s sprag clutch.

Like most sprag clutches, if speeds get higher than the max RPM limit, the sprags in the clutch will lift off the shaft due to centrifugal force. The “lift-off” of the sprags keeps them from being able to engage until the speeds slow down again to a value below the limit.

How GMN Helped

GMN FE 8000 Series Sprag Clutch

GMN provided a direct “drop-in” replacement sprag clutch, from the GMN FE 8000 sprag clutch product line.

The FE 8000 series has a unique design that prevents the sprags from lifting off the shaft at high RPMs, completely removing a maximum RPM limit.

This key feature eliminated the product failure the customer was experiencing and improved the overall functionality of the system.

Added Benefits of the FE 8000 Sprag Clutch

In addition to finding a solution to their primary problem, this company learned that the GMN FE 8000 sprag clutch also provides a higher torque capacity, increasing the safety of the overall winch system. This higher torque capacity is a result of having more sprags in the GMN clutch compared to other sprag clutches on the market.

The GMN sprag clutch was also a direct “drop-in” replacement, eliminating the need for a redesign of the mating components.


This company came to GMN in need of a product that wouldn’t fail when the unspooling RPMs were too high.

Using the technical expertise from GMNs in-house engineers, they delivered a product with no RPM limits that eliminated the product failures, increased safety with the higher torque capacity, and removed the need for a system redesign that saved the company a substantial amount of money.

The GMN FE 8000 series sprag clutch was tested and exceeded the customer’s expectations. The switch was seamless, and the customer couldn’t be happier.
