6001 X - 2Z Radial Bearing

Request a Quote Jump to Specifications

Part Number 6001 X - 2Z
Series Radial
Bearing Type Radial

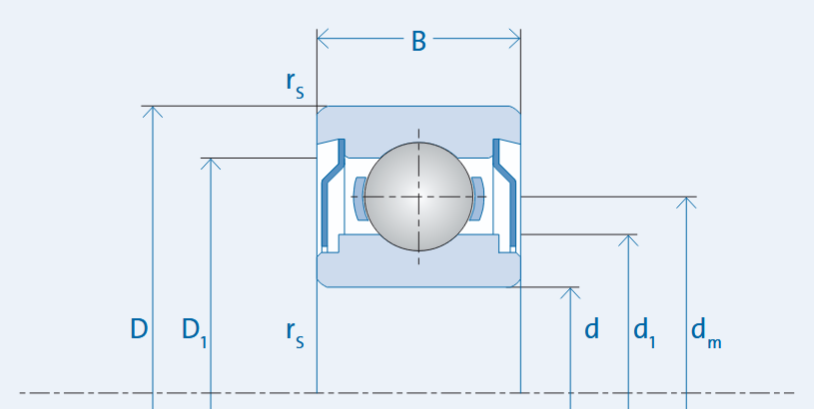

Bore Diameter d [mm] 12
Outer Diameter D [mm] 28
Width B [mm] 11.51
Pitch Circle Diameter dm [mm] 20
Ball Diameter Dw [mm] 4.76
OD Inner Ring d1 [mm] 15
ID Outer Ring D1 [mm] 25.10
Chamfer r1,2 [mm] 0.30


Limiting Speed: Oil Lub. noil [RPM] 69,750
Limiting Speed: Grease Lub. ngrease [RPM] 55,800
Dynamic Radial Load Rating C [N] 4,850
Static Radial Load Rating - Steel Balls C0 [N] 2,210
Static Radial Load Rating - Si3N4 Balls C0 HY [N] 1,560

Geometric Data

Number of Balls Z [qty] 8
Bearing Weight m [kg] 0.03

Mating Part Dimensions

Chamfer Associated Component ra max [mm] 0.30
