HY 607 Radial Bearing

Request a Quote Jump to Specifications

Part Number HY 607
Series Radial
Bearing Type Radial


Bore Diameter d [mm] 7
Outer Diameter D [mm] 19
Width B [mm] 6
Pitch Circle Diameter dm [mm] 13.30
Ball Diameter Dw [mm] 3.18
OD Inner Ring d1 [mm] 10.70
ID Outer Ring D1 [mm] 15.80
Chamfer r1,2 [mm] 0.30


Limiting Speed: Oil Lub. noil [RPM] 120,938
Limiting Speed: Grease Lub. ngrease [RPM] 96,750
Dynamic Radial Load Rating C [N] 2,280
Static Radial Load Rating - Steel Balls C0 [N] 950
Static Radial Load Rating - Si3N4 Balls C0 HY [N] 670

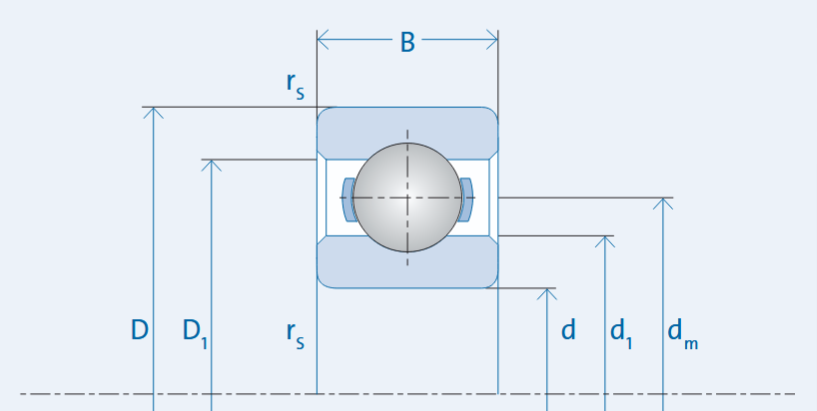

Geometric Data

Number of Balls Z [qty] 8
Bearing Weight m [kg] 0.01

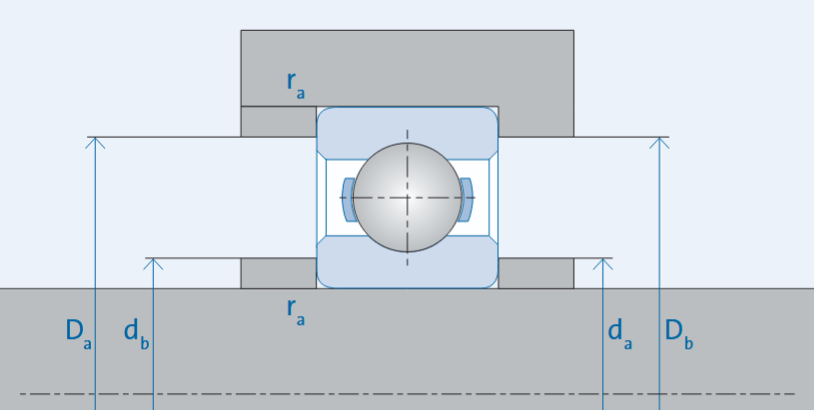

Mating Part Dimensions

Chamfer Associated Component ra max [mm] 0.30
