SM 6005 C TA Steel Angular Contact Bearing

Request a Quote Jump to Specifications

Part Number SM 6005 C TA
Series SM
Bearing Type Angular Contact

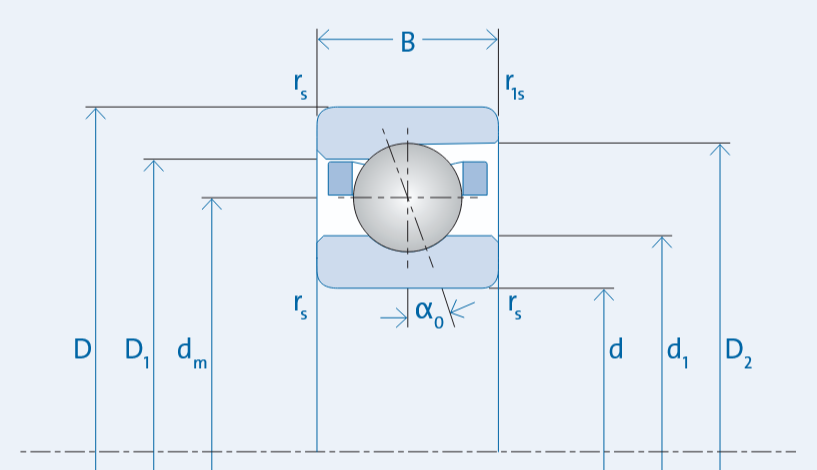

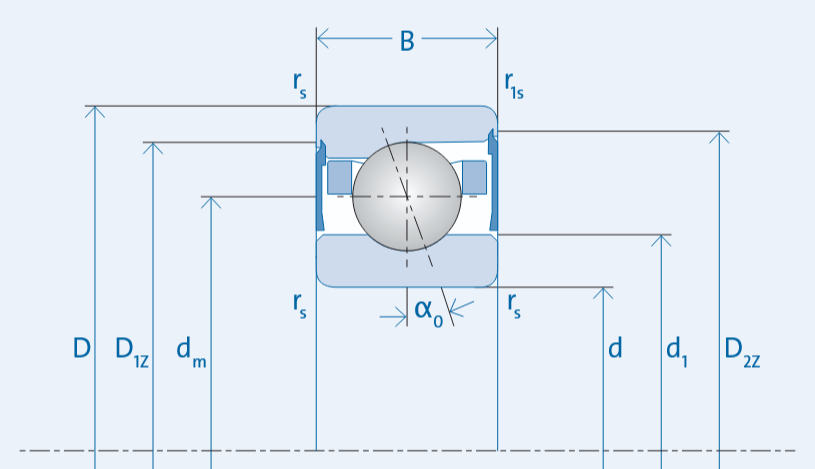

GMN's S series angular contact bearing dimension drawing. Drawing of bearing dimensions with blue lines indicating diameter measurements corresponding to numbers in the data tables.

Dimensions

Bore Diameter d [mm] 25
Outer Diameter D [mm] 47
Width B [mm] 12
Pitch Circle Diameter dm [mm] 36
Ball Diameter Dw [mm] 6.350
OD Inner Ring d1 [mm] 32.200
ID Outer Ring D1 [mm] 40.100
ID Outer Ring - Open Side D2 [mm] 42.300
Chamfer r1,2 [mm] 0.600
Chamfer - Open Side r3,4 [mm] 0.300

Ratings

Limiting Speed: Oil Lub. noil [RPM] 55,000
Limiting Speed: Grease Lub. ngrease [RPM] 41,000
Dynamic Radial Load Rating C [N] 9,200
Static Radial Load Rating - Steel Balls C0 [N] 4,700
Static Radial Load Rating - Si3N4 Balls C0 HY [N] 3,300

Geometric Data

Number of Balls Z [qty] 15
Contact Angle a0 [°] 15
Bearing Weight m [kg] 0.076

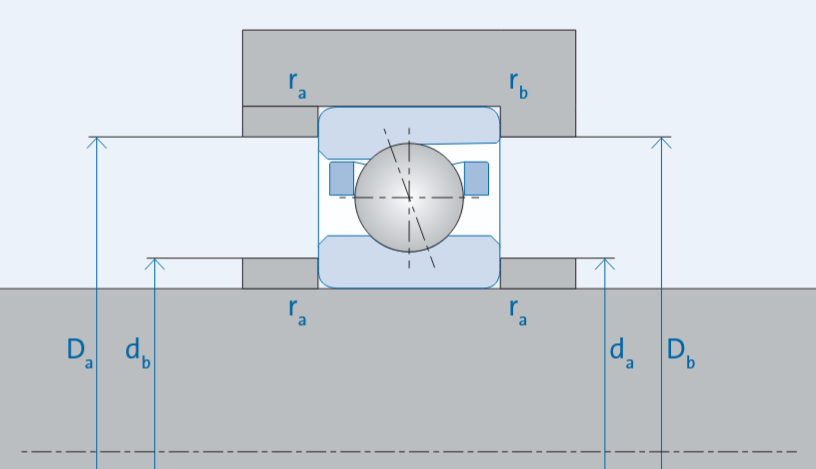

Mating Part Dimensions

Chamfer Associated Component ra max [mm] 0.600
Chamfer Associated Component - Open Side rb max [mm] 0.300
Abutment Diameter Inner Ring da min [mm] 30
Abutment Diameter Outer Ring Da max [mm] 42

Bearing Preload Data

Light Pre-Load Fv [N] 50
Light Axial Rigidity Cax [N/µm] 28
Medium Pre-Load Fv [N] 140
Medium Axial Rigidity Cax [N/µm] 43
Heavy Pre-Load Fv [N] 280
Heavy Axial Rigidity Cax [N/µm] 59
Minimum Spring Pre-Load Ff [N] 280
